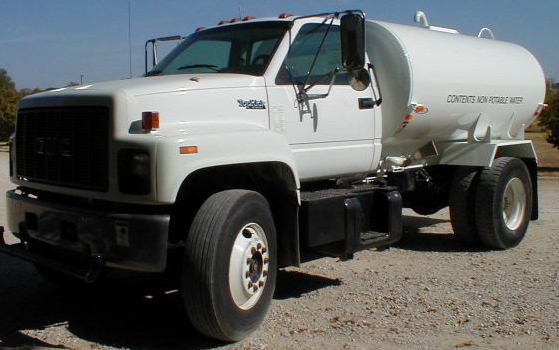

Left front
view

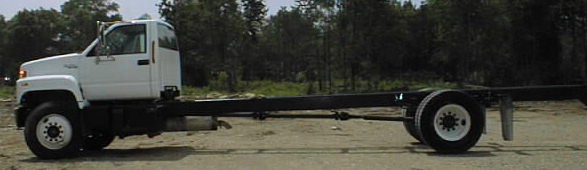

Left
view
Left
view (2)

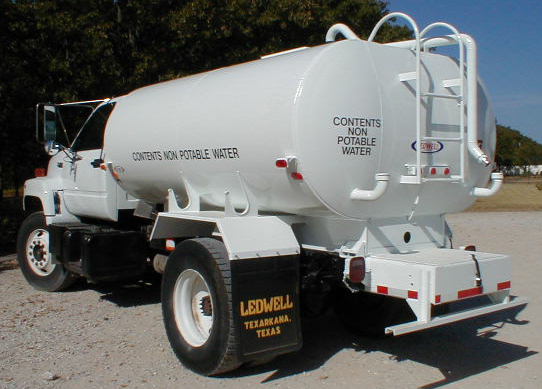

Left rear
view

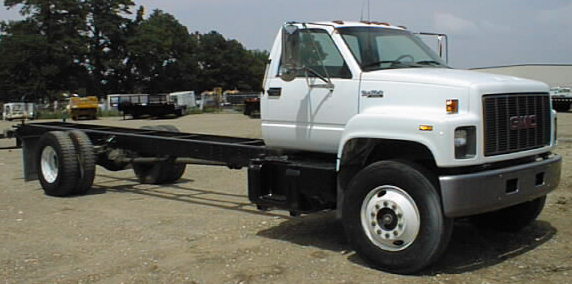

Right front
view

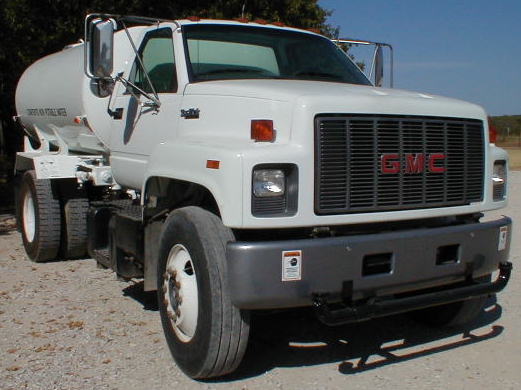

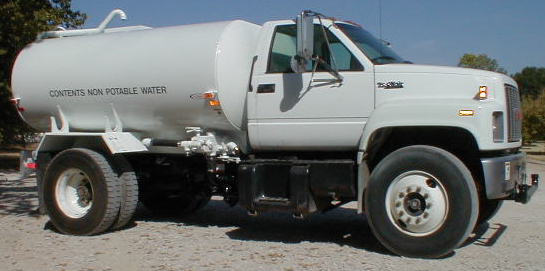

Right front view
(2)
Right
front view (3)

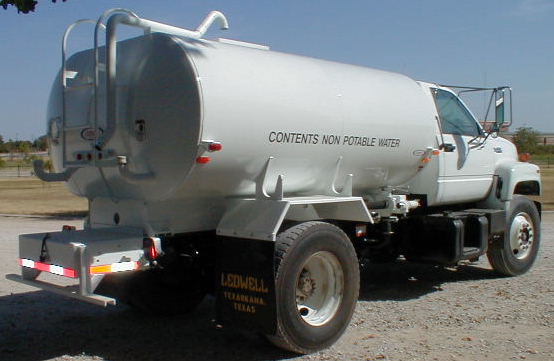

Right rear
view

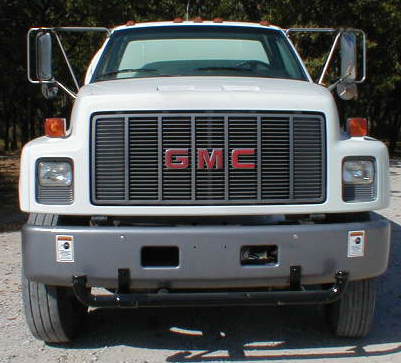

Direct front
view

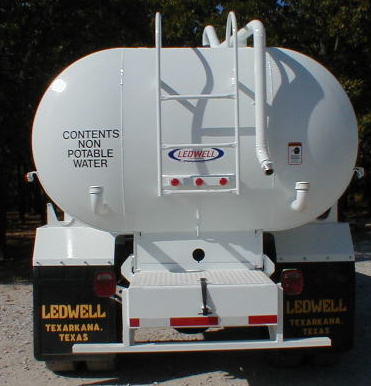

Direct rear
view

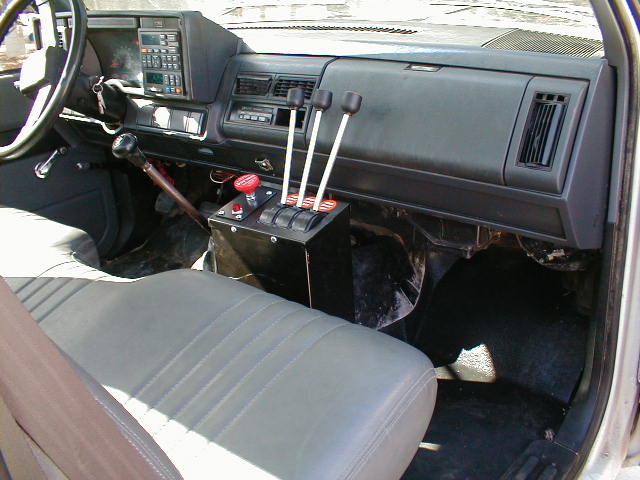

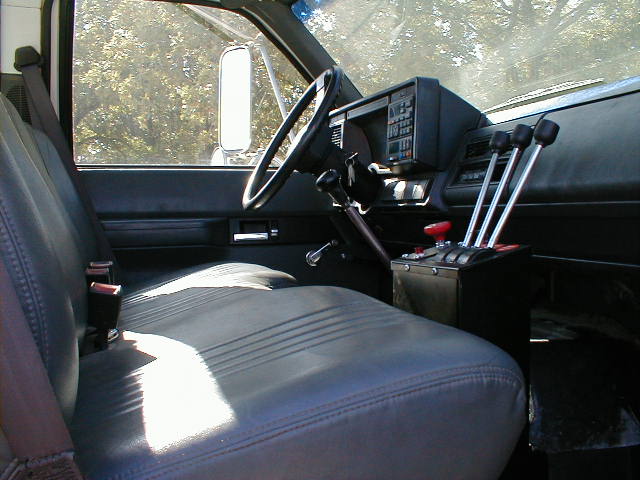

Inside
of cab

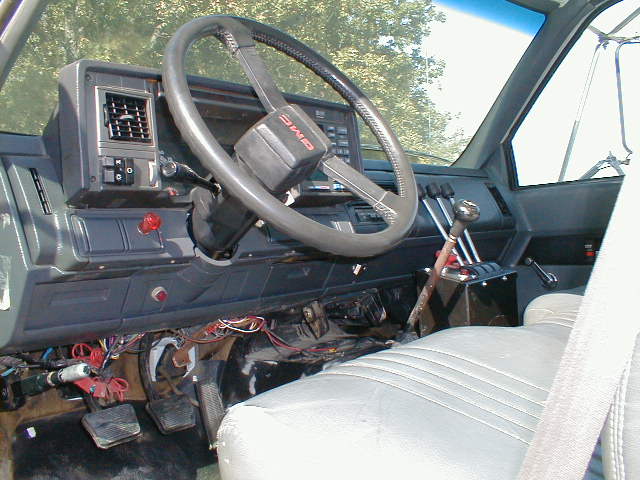

Inside
of cab (2)
Inside of cab
(3)

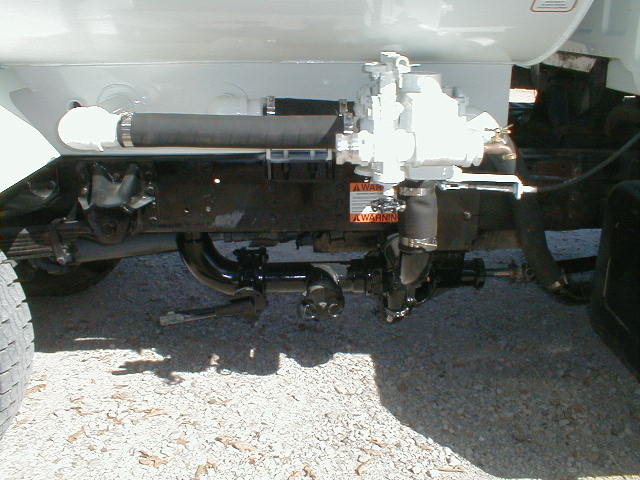

Showing control
valves

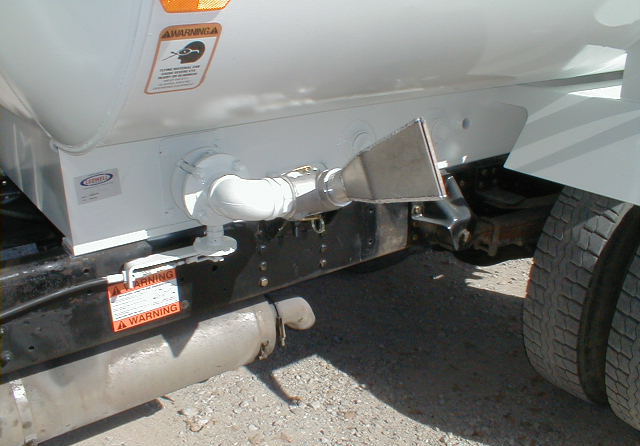

Showing left side spray
head

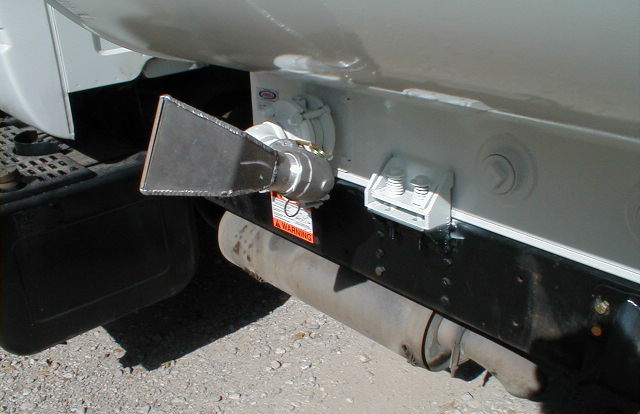

Showing left side spray head
(2)

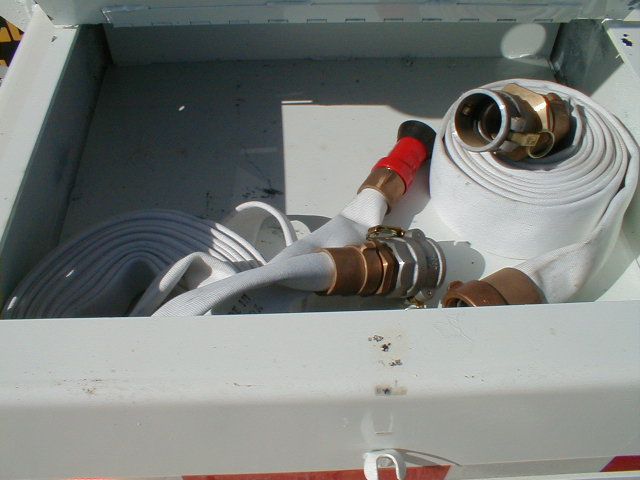

Showing pick-up hose in
rear storage
compartment

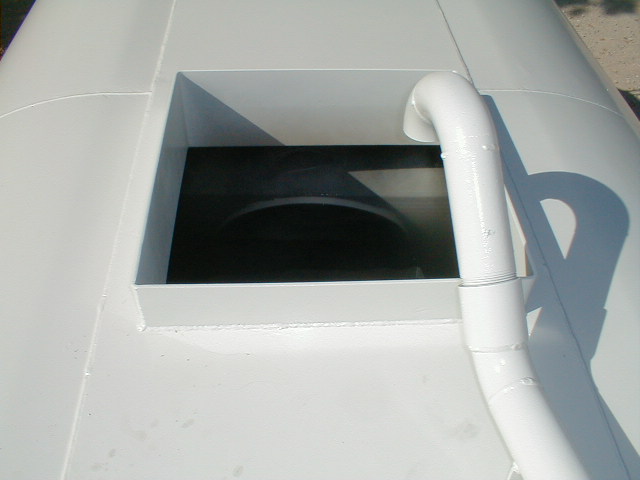

Showing
top loading compartment

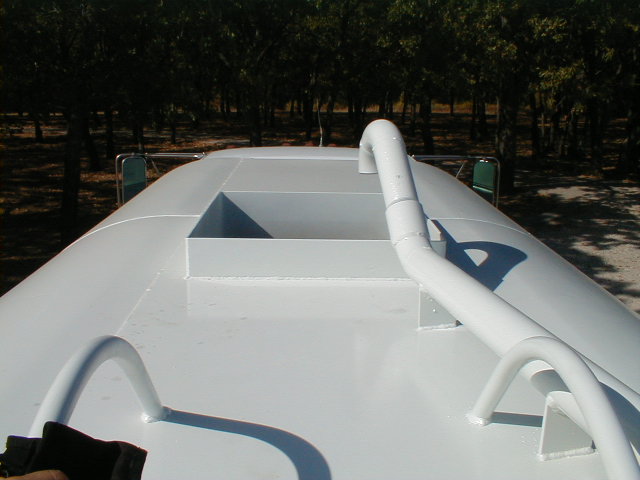

Showing
top loading compartment (2)

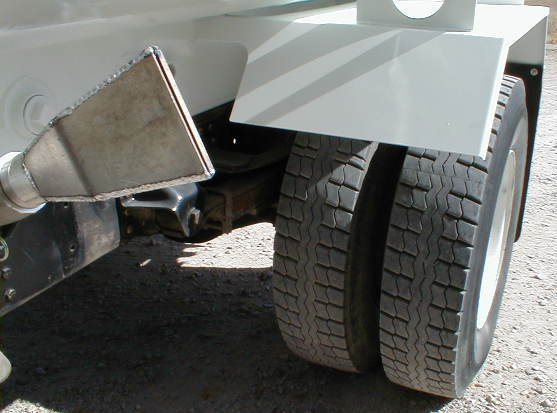

Tires
Tires
(2)

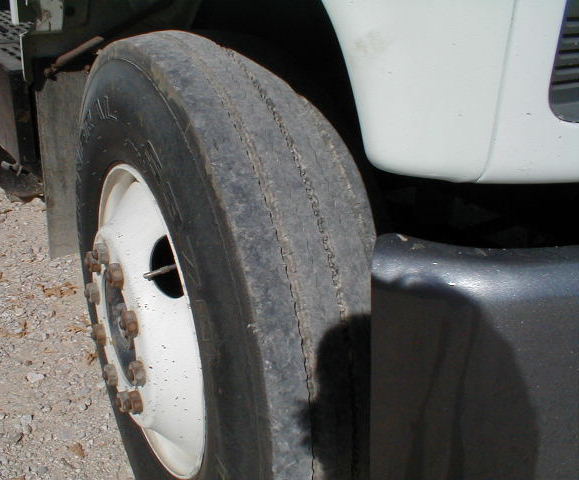

Tires
(3)
|
Unit #: |
P2035 |
Year: |
1995 |
Make: |
GMC |
Model: |
7000 |
Wheelbase: |
Shortened to 84" CA |
GVW: |
25,950 lbs. |
Front axle: |
8,100 lbs. |
Rear axle: |
17,900 lbs. |
Engine: |
Caterpillar 3116 diesel |
Transmission: |
Fuller six speed manual |
Mileage: |
194,382 total miles |
Tires: |
11R22.5 radial tires on ten hole
steel disc wheels |
A/C: |
Yes |
Power Steering: |
Yes |
Radio: |
AM/FM scan and seek radio with
cassette |
Additional: |
Dual 50 gallon rectangular step
tanks, stainless steel mirrors, engine block heaters |
Body: |
NEW LEDWELL 2,000 gallon water tank
assembly with manway, one cross wise baffle, rear-ladder push
bumper-tool box, all welded sub-frame, rubber mounting, hydrant
fill capability: 2 ½" hydrant fill hose, top discharge
hydrant fill water drop, 1 ½" jet spray hose with quick
disconnect, 4"x3" Berkley pump – PTO driven, two
front spray heads/two rear spray heads, left side spray nozzle
w/ 1 ½" hose outlet, low point drain cocks, in-cab manual
control valves, steel fenders, suction plumbed reservoir,
reservoir interior sandblasted and coated, exterior primed and
painted, back-up alarm |
|
