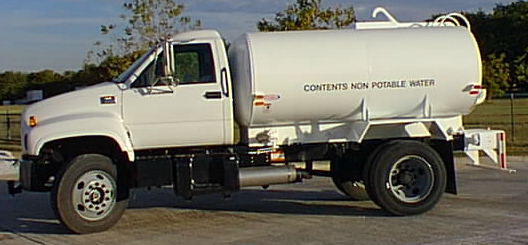

 Left view

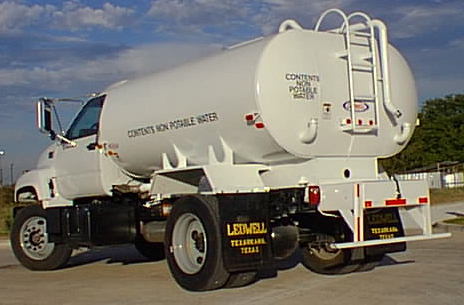

Left rear view

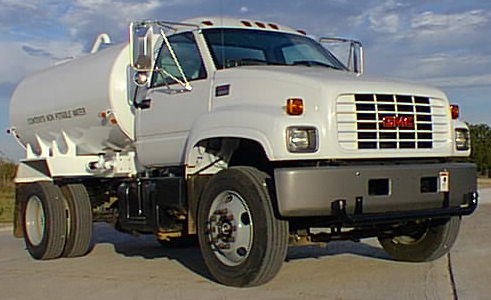

Right front view
Right view

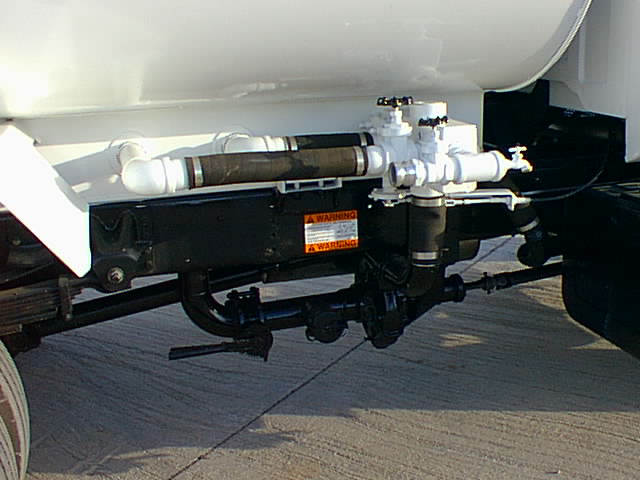

Showing hookup and valves
|
| Year: |
1999 |
| Make: |
GMC |
| Model: |
6500 |
| GVW: |
25,950 lbs. |
| Front axle: |
8,100 lbs. |
| Rear axle: |
17,850 lbs., 3.90
rear axle ratio |
| Engine: |
CAT 3126 7.2 L
diesel at 190 hp |
| Transmission: |
Eaton FS5306 six
speed |
| Brakes: |
Hydraulic |
| Tires: |
Michelin
255/80R22.5 |
| A/C: |
Yes |
| Power steering: |
Yes |
| Additional: |
Full bench seat,
50 gallon fuel tank |
| Body: |
2000 LEDWELL
two thousand gallon water tank assembly with manway, ,
one cross wise baffle, rear-ladder push
bumper-tool box, all welded subframe, rubber
mounting, hydrant fill capability: 2 ½"
hydrant fill hose, top discharge hydrant fill
water drop, 1 ½" jet spray hose with quick
disconnect, 4"x3" Berkley pump –
PTO driven, two front spray heads/two rear spray
heads, left side spray nozzle w/ 1 ½" hose
outlet, low point drain cocks, in-cab manual
control valves, steel fenders, suction plumbed
reservoir, reservoir interior sandblasted and
coated, exterior primed and painted one color,
back-up alarm, mud flaps, fire extinguisher &
triangle reflector kit |
|
