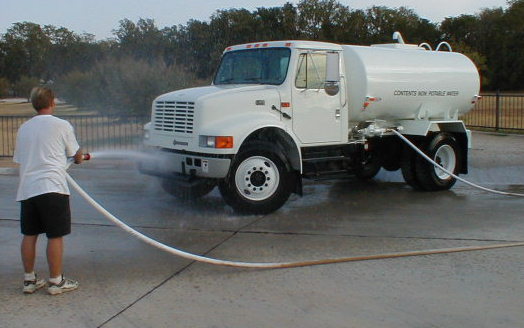

Left front
view
Left front view
(2)

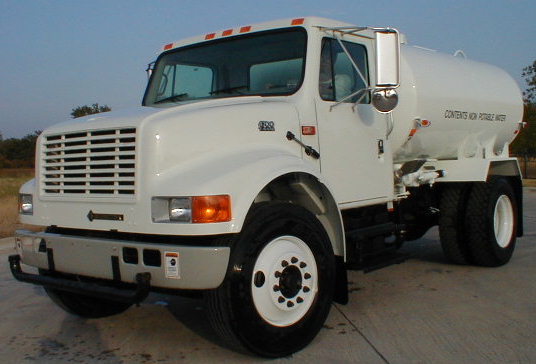

Left front view
(3)

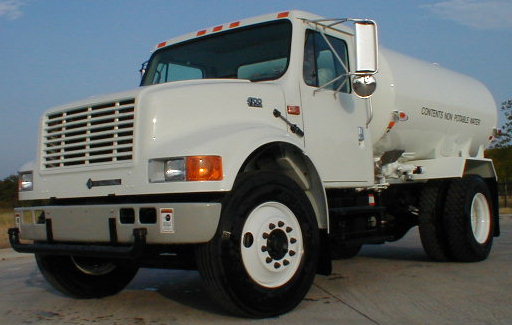

Left front view
(4)

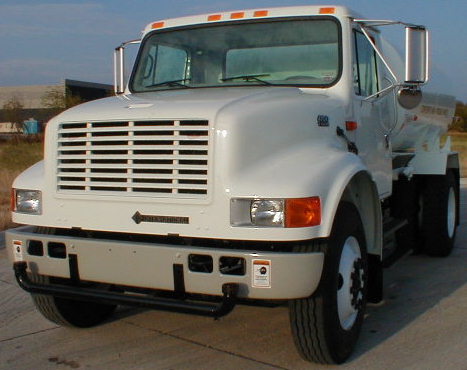

Left front view
(5)

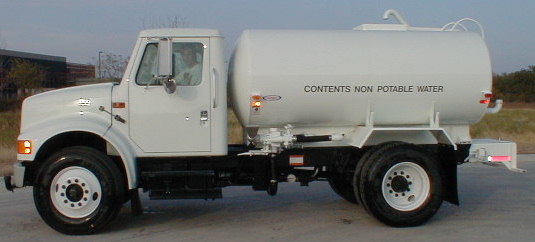

Left
view

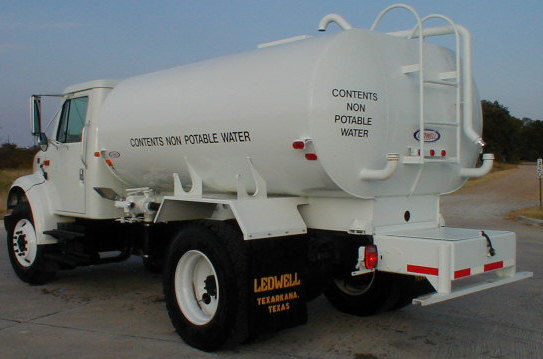

Left rear
view
Left rear view
(2)

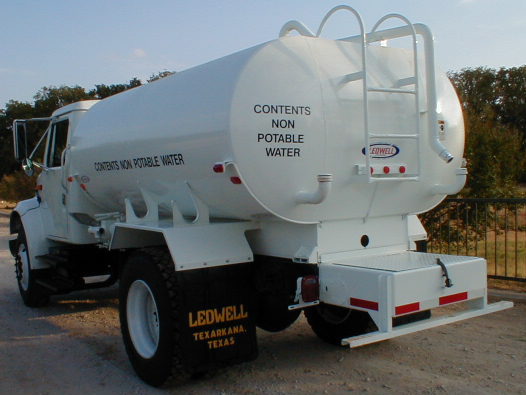

Left rear view
(3)

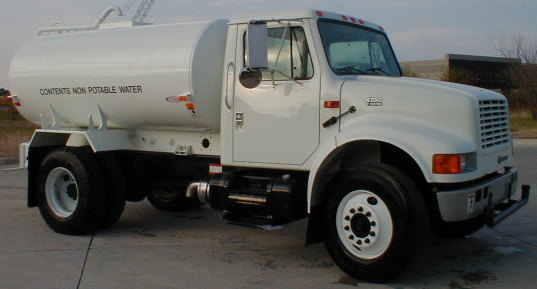

Right front
view

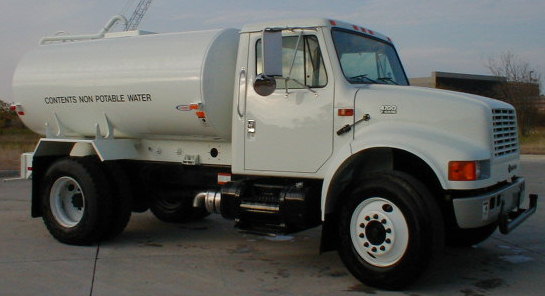

Right front view
(2)

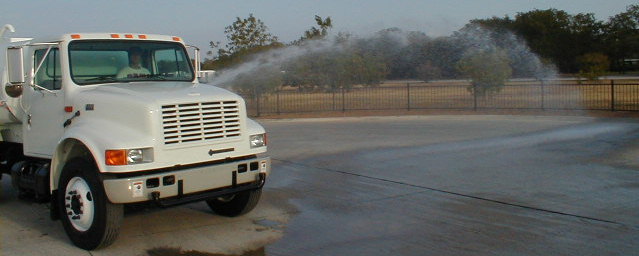

Right front view
(3)

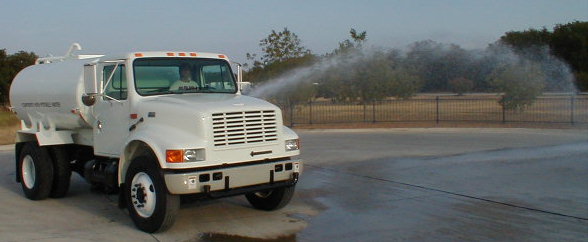

Right front view
(4)

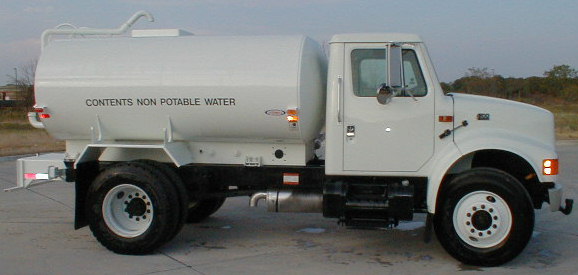

Right
view

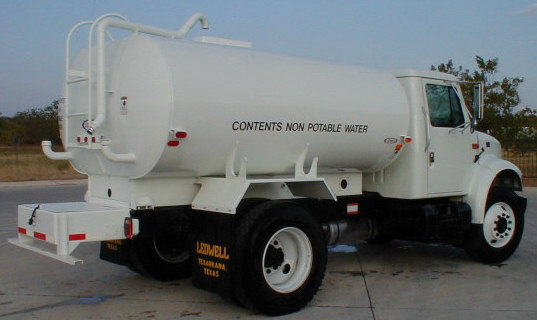

Right rear
view
Right rear view
(2)

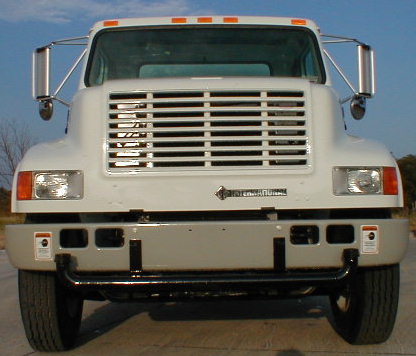

Direct front
view
Direct front view
(2)

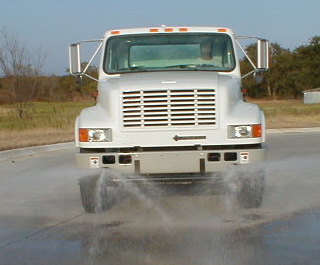

Direct front view
(3) |
| Unit #: |
P2200 |
| Year: |
2001 |
| Make: |
IHC |
| Model: |
4700 |
| GVW: |
25,950 lbs. |
| Engine: |
DT44E 195 hp |
| Transmission: |
Six plus one manual |
| Brakes: |
Hydraulic disc brakes with ABS |
| Tires: |
Goodyear 11RX22.5 radial tires on
steel disc wheels |
| A/C: |
Yes |
| Power steering: |
Yes |
| Additional: |
50 gallon right hand fuel step tank |
| Body: |
Ledwell 2000 gallon water tank
assembly with manway, one cross wise baffle, rear-ladder push
bumper-tool box, all welded subframe, rubber mouting, hydrant fill
capability: 2 1/2" hydrant fill hose, top discharge hydrant
fill water drop, 1 1/2" jet spray hose with quick disconnect,
4"x3" Berkley pump - PTO driven, two front spray
heads/two rear spray heads, left side spray nozzle w/ 1 1/2"
hose outlet, low point drain cocks, in-cab manual control valves,
steel fenders, suction plumbed reservoir reservoir interior
sandblasted and coated, exterior primered and painted, back-up
alarm. Less than 300 total miles, Factory warranty |
|
